80 Ton Weighbridge

  • Maximum weighing capacity: 80 ton
  • Strong anti-interference ability: Minimizes external signal interference for stable operation.
  • Enhanced signal transmission: Resolves issues with weak transmission signals.
  • Long-distance signal transmission: Enables data transfer over greater distances.
  • System integration: Can be integrated into modern microcomputer weighing management systems.
  • Anti-cheating: Prevents fraudulent weighing practices.

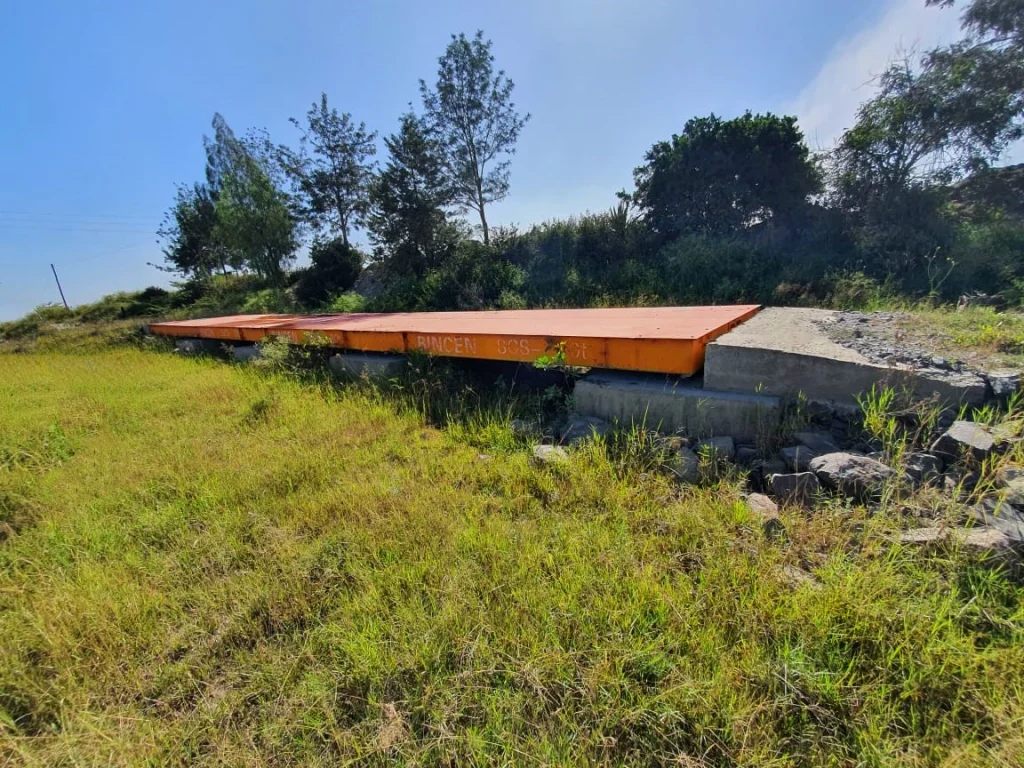

Bincen 80 Ton Weighbridge is a practical weighing device made up of sensors, a scale platform, instruments, junction boxes, data cables, and a slope (without a base). It is suitable for concrete mixer trucks, rear eight-wheel vehicles, and front four-rear eight vehicles (length of 9.6 meters), effectively weighing coal, gangue, crushed stone, sand, grains, minerals, and chemicals.

With strong anti-interference capabilities for stable operation, enhanced signal transmission to resolve weak signals, and long-distance data transfer, it integrates with modern microcomputer management systems and includes anti-cheating features to ensure accurate weighing.

Features of 80 Ton Weighbridge

  • Strong anti-interference ability: Minimizes external signal interference for stable operation.
  • Improved measurement accuracy: Ensures precise weighing results.
  • Enhanced signal transmission: Resolves issues with weak transmission signals.
  • Long-distance signal transmission: Enables data transfer over greater distances.
  • Bus structure: Supports multiple weighing sensors for increased flexibility.
  • Printer compatibility: Allows for printing weighing orders, reports, and other documents.
  • System integration: Can be integrated into modern microcomputer weighing management systems.
  • Serial interfaces: Connects to computers, displays, and other devices.
80 Ton Weighbridge6

The Function of 80 Ton Weighbridge

  • Anti-cheating: Prevents fraudulent weighing practices.
  • Load capacity check: Determines if a vehicle is overloaded.
  • Essential functions: Weighing, peeling, time, date, and printing.
  • Safety features: Zero point automatic tracking, overload, and over-limit alarms.
80 Ton Weighbridge4

Parameters of 80 Ton Weighbridge

  • Maximum weighing capacity: Max=80t
  • Length: 9、10m、12m、14m、16m、18m、20m、22m、24m
  • Width: 3m、3.2m、3.4m
  • Verification standards: Digital scale JJG539-2016
  • Accuracy level: OIML III; Graduation value: d=10kg, e=20kg
  • Safety overload: 125%F.S.
  • Scale body structure: All steel structure, stiffness: 1/1000F S
  • Power supply: AC220V (-15～+10%)，50Hz±2%
  • Installation method: Shallow foundation pit or no foundation pit, steel slope can be customized
  • Scale platform: Composed of 2 or more weighing platforms

* Various special specifications of weighing scales can be customized according to customer requirements.

80 Ton Weighbridge1

80 Ton Weighbridge Accessory List

Accessory NameSpecificationBrand
Weighing sensorStainless steel casingAnti surge, with anti-induction lightning designZEMIC/KELL/Celtron/UTICLELL
Weighing instrumentStandard configuration:
1. RS232/RS485 adaptive;
2. RS232
◆ Power supply: AC187-242V; 49-51HZ
◆ DC power supply: powered by an external 12V battery		YaoHua\KELL\Celtron\UTICLELL
Junction boxStainless steel casing Anti-surge, with anti-induction lighting designRemodeled by Bincen
Scale body limitThe four corner limits of each scale sectionSupporting facilities of Bincen
Lightning protection grounding flexible copper wireReduce damage to sensors caused by induced lightning strikesSupporting facilities of Bincen
Optional configurationComputers, printers, weighing management software, unmanned weighing systems, weighing systems with license plate recognitionBincen

Installation of 80 Ton Weighbridge

Modular Design for Easy Installation

  • Bincen’s modular product design simplifies system integration.
  • Reduced need for large cranes during the 80 Ton Weighbridge installation saves on costs and labor.

Comprehensive Technical Support

  • Bincen offers a comprehensive technical service system.
  • Services include technical consultation, installation guidance, and after-sales support.
  • Although on-site service is not available in your area, detailed installation video materials are provided for remote guidance.

Certifications and Customization

  • CE Certification: Adheres to European standards.
  • Customized Solutions: Offers tailored products through ODM and OEM services.
  • Warranty: Provides free replacement of damaged accessories within the warranty period.

Technical Support

  • Construction Guidance: Basic guidance on scale construction.
  • Remote Assistance: Offers remote installation guidance, software debugging, and fault diagnosis for efficient troubleshooting.
  • Additional Services: Includes randomly gifted toolboxes and voltage regulators.

Bincen’s Commitment to Excellence

  • Experienced Team: Over 30 years of technical expertise in the weighing field.
  • 24/7 Support: Lifelong technical assistance through online service.
  • Quality Assurance: Adheres to ISO9001 quality standards, ensuring durable and high-quality products.

FAQ

A1:

  • Spot products and goods will be delivered within 15 days after receiving the deposit or full payment.
  • Customized products shall be delivered within 30-45 days after receiving the deposit.
  • Payment before delivery.

A2: 15 days from quotation date.

A3: One-year warranty, discontinued online remote guidance service.

A4: Always a pre-production sample before mass production; Always final Inspection before shipment.

A5: Provide your email, phone number, Whatsapp, and other contact information to facilitate our sales personnel to communicate with you in the future; We also need to provide the specifications of the products you require, such as size, maximum weight, etc., so that we can provide you with a faster quotation.
